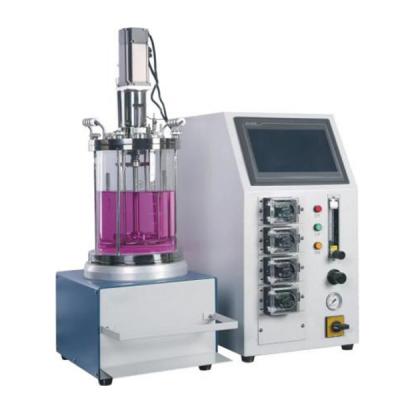

Customizable Glassware Bioreactor 5l for Cell Culture

Lab Fermentation Bioreactor For Bacteria

Multiple Control Function

• Associated control: temperature, stirring speed, pH, dissolved oxygen, defoaming, airflow, tank pressure, feed amount and other direct parameters.

• Remote monitoring: Suitable for smartphones, tablets, laptops and PC for instant remote monitoring.

• Step control: Users can switch directly between manual control and step control and set at least 10-step control program for temperature, agitation, PH, DO and feeding.

Smart PID control

• Temperature, stirring speed, Ph, DO and other parameters in the tank can be controlled by subsection curve setting according to the process requirements.

• Temperature Control: Adopt PID automatic control mode; SS316L jacket base for electric heating and cold water for cooling.

• Dissolved oxygen control: equipped with DO electrode and shielded conductor, DO is associated with stirring motor speed, feeding, airflow, tank pressure and other parameters.

• PH value control: Intelligent PID system control built-in control peristaltic pumps for acid-alkali adjustment, with high control precision.

• Antifoam control: Foams are automatically detected and the peristaltic pump is controlled to add defoamer in proportion to time.

• Feeding control: Peristaltic pump switch control (manual, automatic, and off); accumulation volume control; coupled with other parameters (DO, pH, etc).

Standard Glass Vessel

• Equipped with an easy-to detach condenser around the air outlet, for easy cleaning, no effusion and no contaminating bacteria.

• Standard sensors port for precise measurement and control of temperature, pH, DO, Antifoam, feed, aeration and pressure.

• Magnetic drive stirring for good sealing performance.

• Compact design for saving critical laboratory space..

• Standard with flat or pitched-blade; other types of impellers are available

• Configured one sampling port.

• Equipped with a filter to prevent contaminated air from getting to the system.

• Tempered high borosilicate glass 3.3 for vessel and SS316L for the heating plate.

• Perfectly suited for research and development, available in 1L, 2L, 3L, 5L, 7L, 10L and 15L.
