Lab scale fermentation bioreactor fermenting tank for solid phase and semi-liquid
Cultivator benchtop bioreactor plant cell
-
Item no:OLT-100
Payment:T/T
Product origin:China
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !

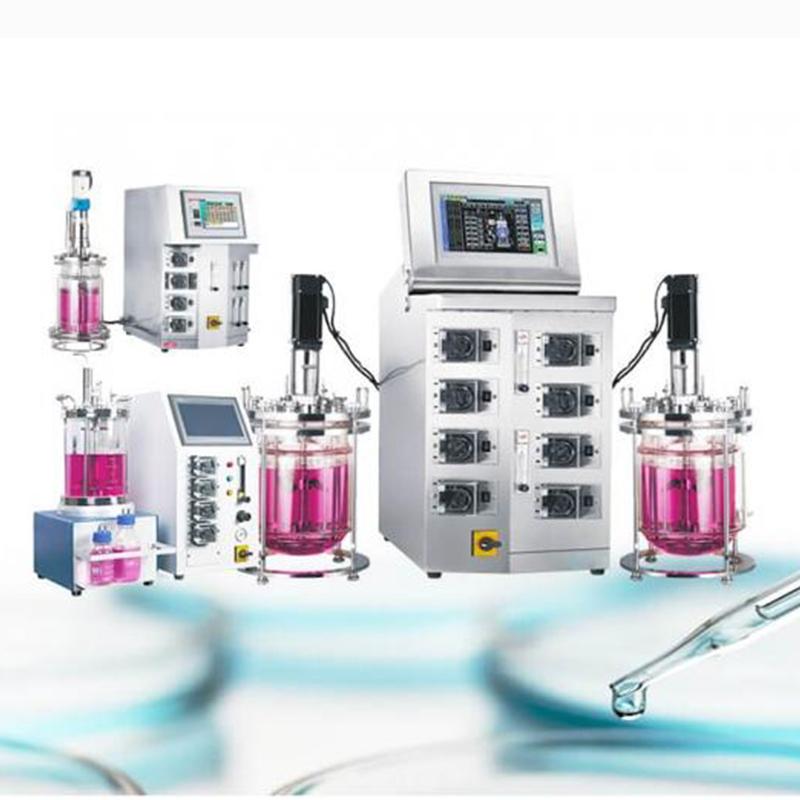

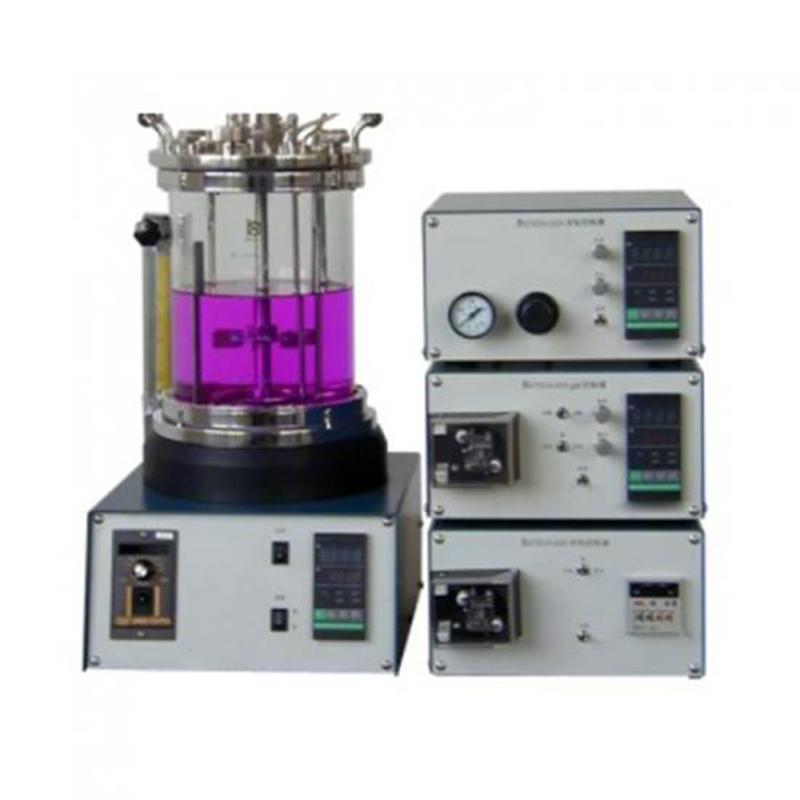

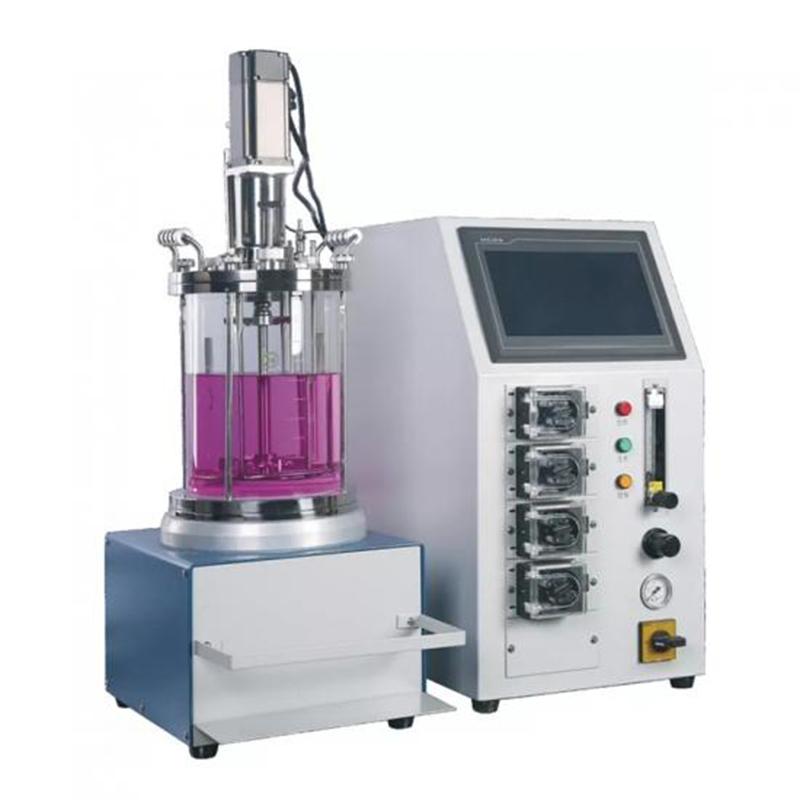

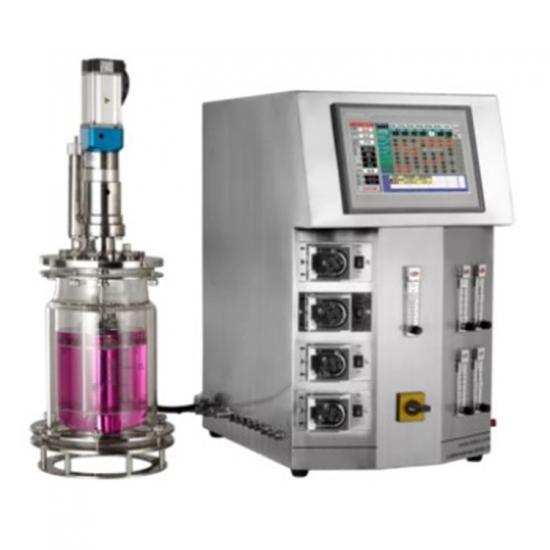

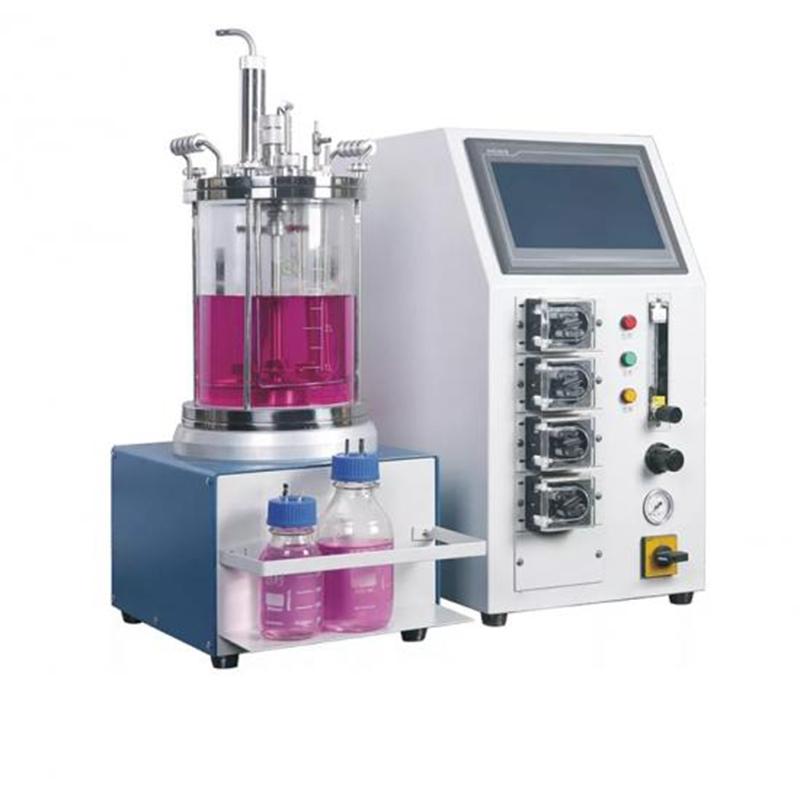

Laboratory benchtop glass bioreactor system
Product Description
OLLITAL offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Technical Data
Controller Technical Data
Control Unit | BR100-M1 | BR100-M2 | BR100-C1 | BR100-C2 | BR500-M1 | BR500-M2 | BR500-C1 | BR500-C2 |
Digital controller, colored touch screen | ● | |||||||
Temperature, DO, agitation speed | ● | |||||||
Adding acid/alkali/CO2 to control PH | ● | |||||||
Rotameter | ● | |||||||
Low noise stirring motor | ● | |||||||
Peristaltic pump | 4pcs | 8pcs | 4pcs | 8pcs | 4pcs | 8pcs | 4pcs | 8pcs |
Adjusting PH (acid/alkali), deform, feeding | ||||||||
Glass Vessel Technical Data
Culture Vessel | 1L | 2L | 3L | 5L | 7L | 10L |
H:D ratio | ≈1:2 | |||||
Total volume | 1.1L | 2.7L | 3.5L | 5.8L | 7.9L | 11.2L |
Working volume | 0.8L | 2.0L | 2.6L | 4.4L | 6.0L | 8.4L |
Minimal working volume | 0.3L | 0.7L | 0.9L | 1.5L | 2.0L | 2.8L |
Agitation speed range | 5~1000rpm | |||||
Motorpower | 0.18Kw | 0.4Kw | 0.4Kw | 0.4Kw | 0.4Kw | 0.75Kw |
Impeller to vessel diameter ratio | 1:02 | |||||
Surface treatment | Inner vessel Ra ≤ 0.4 um，Outer surface Ra＜0.6 um | |||||
Material | Pressure | SUS316L, Borosilicat glass| | 0.10Mpa（Max 0.15Mpa） | |||||
