Touch Screen High Pressure Reactor
This new type and simple high pressure reactor is a simple stainless high pressure reactor. It can working in the drying oven on forced convection,constant t...
-
Item no:OLT-HPT-50
Payment:100% prepay
Product origin:Xiamen, China
Capacity:10-2000ml
Voltage:108-240V
Certificate:CE certificate
Warranty:1 year
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
This product is used for chemistry and chemical engineering synthetic reaction under high temperature and high pressure or catalytic reaction, and such environmental conditions that needs to measure the pressure, temperature, and measuring speed at the same time, and add inert gas protection, pacify pressure and realize online-sampling or online feeding.
It is widely used for the flammable and explosive, highly toxic, precious media and other highly permeable chemical medium for stirring reaction. Used in the process of vulcanization and fluoridation of petroleum, chemical, organic synthesis, polymer
polymerization, Hydrogenation and other non-leakage reactions. With super magnetic stirring function and program temperature control functions.
Specification
Model | OLT-HPT-10 | OLT-HPT-25 | OLT-HPT-50 | OLT-HPT-100 | OLT-HPT-250 | OLT-HPT-500 |
Volume(ml) | 10 | 25 | 50 | 100 | 250 | 500 |
Service temperature(℃) | RT-350℃,Higher temperatures can be customized according to customer requirements | |||||
Use pressure(Mpa) | -0.1-10 Standard 10Mpa, customized according to customer requirements | |||||
Heating power(w) | 600 | 600 | 1000 | 1000 | 1500 | 1500 |
Control mode | PID artificial intelligence adjustment, Touch screen | |||||
Mixing form | Magnetic stirring | |||||
Mixing power(w) | 80 | |||||
Stirring speed(rpm) | 0-1500 | |||||
Positive and reverse regulation | Positive inversion | |||||
Temperature setting | Self setting function of temperature | |||||
Safety protection | Set upper temperature limit, over temperature alarm, self power-off protection | |||||
Timing function | Working time and holding time can be set regularly | |||||
Supply voltage | AC 108V-240V 50Hz | |||||

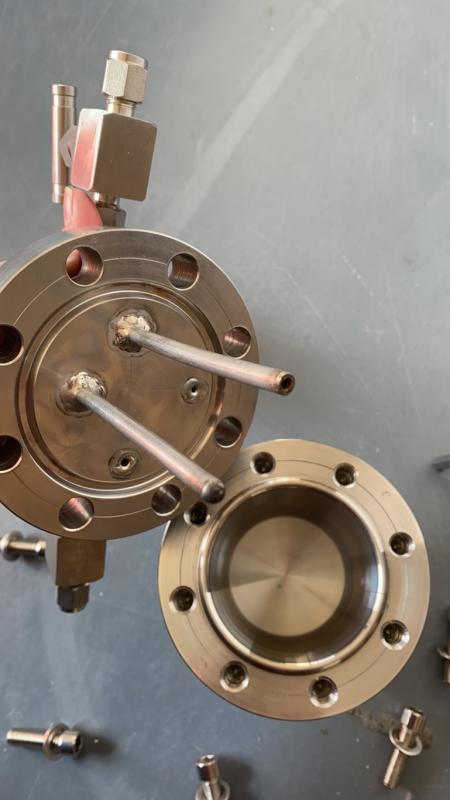

Detailed Images
