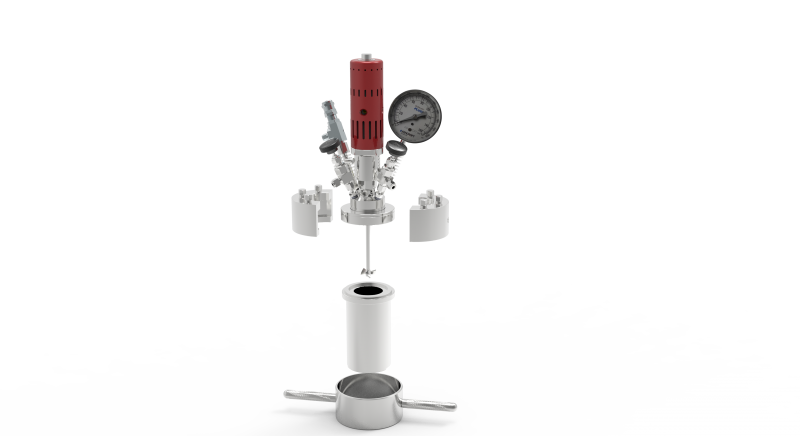

Lab High Pressured Magnetic Coupling Drive Reactor
This product is used for chemistry and chemical engineering synthetic reaction under high temperature and high pressure or catalytic reaction, and such envir...
-
Item no:OLT-PR-100KJ
Payment:100% prepay
Product origin:Xiamen, China
Capacity:100-2000ml
Voltage:108-240V
Certificate:CE certificate
Warranty:1 year
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
This product is used for chemistry and chemical engineering synthetic reaction under high temperature and high pressure or catalytic reaction, and such environmental conditions that needs to measure the pressure, temperature, and measuring speed at the same time, and add inert gas protection, pacify pressure and realize online-sampling or online feeding.
It is widely used for the flammable and explosive, highly toxic, precious media and other highly permeable chemical medium for stirring reaction. Used in the process of vulcanization and fluoridation of petroleum, chemical, organic synthesis, polymer
polymerization, Hydrogenation and other non-leakage reactions. With super magnetic stirring function and program temperature control functions.
Specification
Model | OLT-PR-100KJ | OLT-PR-150KJ | OLT-PR-200KJ | OLT-PR-250KJ | OLT-PR-500KJ | OLT-PR-1000KJ |
Volume(ml) | 100 | 150 | 200 | 250 | 500 | 1000 |
Service temperature(℃) | RT-300℃, Higher temperatures can be customized according to customer requirements | |||||
Use pressure(Mpa) | Standard 10Mpa, customized according to customer requirements | |||||
Heating power(w) | 1000 | 1000 | 1500 | 1500 | 1800 | 2000 |
Control mode | PID artificial intelligence adjustment, LCD digital display | |||||
Mixing form | Mechanical stirring | |||||
Mixing power(w) | 80 | |||||
Stirring speed(rpm) | 0-1500 | |||||
Sealing form | Upper and lower flange gasket seals | |||||
Kettle lid interface | Temperature measuring port, pressure gauge port, proportional unloading valve port, air inlet, exhaust port | |||||
Safety protection | Set upper temperature limit, over temperature alarm, self power-off protection | |||||
Timing function | Working time and holding time can be set regularly | |||||
Supply voltage | AC 108V-240V 50Hz | |||||
Extended function (optional) | 1. Isobaric feeding function: liquid phase material (total control) during the reaction 2. High-pressure feed pump: feed liquid-phase material during the reaction (accurately control the flow rate) 3. Gas mass flowmeter: Accurately measure gas cumulative flow, instantaneous flow 4. Built-in cooling coil: can achieve rapid cooling in the kettle 5. Process sampling function: rapid sampling analysis during the reaction process 6. Condenser: realize condensation reflux or recovery function | |||||
Detailed Images
 | Pressure gauge: German WIKA shock-proof pressure gauge, high precision; 316L stainless steel material, anti-corrosion and durable. Optional diaphragm pressure gauge |
 | Explosion-proof components: safety line of reaction kettle, automatic pressure relief for overpressure. American brand, safe and durable |
 | Condensing tower: The fin structure is adopted, which greatly increases the heat dissipation area. Good protection of pressure gauge and proportional unloading valve |
 | Temperature measuring components: K-type thermocouple imported from OMEGA in the United States, with high precision and sensitive response. Quick plug connector, easy to disassemble. |
 | Valve: high temperature and high pressure right angle needle valve, standard 1/4", 316L stainless steel material. Standard domestic high-end valve, imported valve can be selected according to requirements. |
 | Magnetic coupling drive to solve the problem of stirring and sealing of high pressure reactors |
 | Standard three-blade propeller, propeller type can be selected according to customer requirements |
 | The whole bar is processed by CNC machining center at one time without any welding points. It adopts semi-open-loop quick-opening design, which is more convenient to disassemble. The standard material is 316L. According to the anti-corrosion situation, Hastelloy, Monel, zirconium, titanium and other materials can be selected. |
 | Control box & heating furnace: The heating furnace of the control box is integrated to save space; the upper part is integrally poured into the electric heating furnace, which is durable; the lower control box can display the adjustment speed, the temperature in the kettle, the furnace temperature, and the time of the reaction kettle. Set the upper limit of furnace temperature and over-temperature self-power-off protection |
Standard configuration list
| No. | Name | QTY | Unit | Remark |
| 1 | Kettle body | 1 | Set | SS316L material |
| 2 | Control Box & Heating Furnace | 1 | Set | One-piece structure |
| 3 | Magnetically coupled stirrer | 1 | Unit | Including shaft and paddle |
| 4 | Pressure gauge 0-16Mpa | 1 | Unit | Germany WIKA |
| 5 | Proportional unloading valve | 1 | Piece | FITOK |
| 6 | Temperature measurement components | 1 | Stick | American OMEGA |
| 7 | Intake valve | 1 | Unit | SS316L material |
| 8 | Outlet valve | 1 | Unit | SS316L material |
| 9 | Thermowell | 1 | Stick | SS316L material |
| 10 | Bottom tube | 1 | Stick | SS316L material |
| 11 | Sealing ring | 1 | Unit | Modified tetrafluoroethylene |
| 12 | Wrench | 1 | Unit | Dedicated removal tool |
