An engineering site-readiness guide for glass and stainless steel fermentation systems

The equipment can be ready while the building is not

A fermentation system may have passed factory checks yet remain unusable after delivery because the laboratory air supply is not suitable, the cooling loop cannot remove process heat, the electrical connection differs from the ordered specification, or the drain is inconveniently located. These issues are not minor accessories. They affect sterility protection, process control, commissioning time and daily operating cost.

At OLLITAL, we recommend treating the site utility sheet as part of the equipment specification. The key is not to assume a universal pressure, flow rate or electrical demand for every fermenter. Instead, agree on a project-specific interface schedule that identifies what the supplier will provide, what the site will provide, and what evidence must be checked before a technician attempts commissioning.

This guide focuses on laboratory and pilot-scale glass and stainless-steel bioreactors. It explains what to investigate and document; it is not a substitute for a project-specific utility drawing, local code review or the manufacturer’s operating instructions.

Quick answer: the six utility interfaces to confirm

Before ordering or installing a bioreactor fermentation system, confirm these six boundaries: (1) process-air and optional gas composition, delivery quality and pressure; (2) cooling-water or recirculating-fluid availability and heat rejection; (3) steam or external-autoclave arrangements for the actual sterilizable scope; (4) site electrical voltage, frequency, grounding and protection; (5) exhaust handling and drainage; and (6) physical space for access, lifting, cleaning and service.

For every item, record the required condition at the equipment connection, the expected operating and peak case, the available condition at the site, the connection standard, and the responsible party. A brochure description such as “air supply available” or “water connection nearby” is not enough.

1. Compressed air: quantity is only the beginning

For aerobic cultures, process air supports oxygen delivery, gas exchange and sometimes instrument or valve functions. A usable utility specification must go beyond the presence of a compressor. It should cover the delivered flow range, pressure stability under simultaneous users, air quality requirements, filtration, moisture handling, pressure-regulator placement and the point at which the air enters the sterile boundary.

Sterile process gas and ordinary plant compressed air are not interchangeable labels. Even when an upstream air network is clean, the approved bioreactor configuration may rely on suitably selected and maintained point-of-use filtration. The appropriate gas quality, filter arrangement and integrity-check method depend on the culture, process risk, piping layout and operating procedure.

The published OLLITAL OLT-100-M1 glass bioreactor lists a one-line Air/O₂ arrangement with a rotameter and additional gas-mixing options. The OLT-500-C1 stainless-steel bioreactor lists Air/O₂/CO₂/N₂ gas connections with rotameters for the specified controller. These examples demonstrate why a buyer should check which gas streams are actually included in the ordered configuration, rather than assuming the same utility demand across both platforms.

Also examine the behavior during high demand. If multiple vessels share one compressor, a neighboring process may cause a pressure drop precisely when a fermentation increases airflow. The operator may see a DO-control problem even though the sensor and control logic are healthy. Review simultaneous demand, pressure losses along hoses and filters, and how upstream fluctuations are isolated.

What to record for the air interface

Document the required gas types, minimum and peak flow at the equipment connection, permissible supply pressure range, the site’s measured capacity during concurrent operation, air-treatment and filtration responsibilities, and whether condensate or oil carryover has been assessed. Do not insert generic numbers from another machine’s datasheet as guaranteed values for the ordered unit.

2. Cooling-water service must match biological heat release

Fermentation is a heat-producing process. Heat demand changes with culture activity, agitation, gas flow, ambient conditions and vessel geometry. A bioreactor may maintain the setpoint early in a run but drift above it during peak oxygen uptake because the external cooling medium is too warm, its flow is restricted, or the heat exchanger and vessel jacket cannot reject enough heat at that moment.

There are important differences across product types. The current OLLITAL glass-platform description mentions electrical heating and a vessel/exhaust cooling arrangement. The OLT-500-C1 stainless platform lists a recirculating pump and heat exchanger for cooling and heating. These descriptions identify equipment concepts; neither one specifies that a particular buyer’s water line, chiller capacity or drain is automatically adequate.

Ask for the expected cooling duty under the proposed process, the permitted coolant inlet temperature and flow range, pressure/drop limits, permissible fluid type and the water-quality requirements needed to protect channels, seals and heat-transfer surfaces. A building that can provide cool water in winter may offer a very different inlet temperature during summer. The worst relevant seasonal condition is often more useful than a nominal catalogue rating.

Temperature-control instability should not immediately be blamed on the PID settings. Before modifying control parameters, check that valves are in the intended positions, the circulation path is open, hoses are not kinked, the coolant temperature is reasonable, the pump is operating as specified, and the sensors measure what the controller expects. Any maintenance or inspection must observe isolation and lockout procedures appropriate to the system.

3. Site-side startup checks: prove the interfaces work together

Utilities are interdependent. A controller can show healthy values while a pressure regulator is at its limit, a chiller is short of reserve capacity or a drain branch is backing up. During installation qualification or commissioning, the team should observe both the setpoints and the physical utilities at an approved, representative operating point.

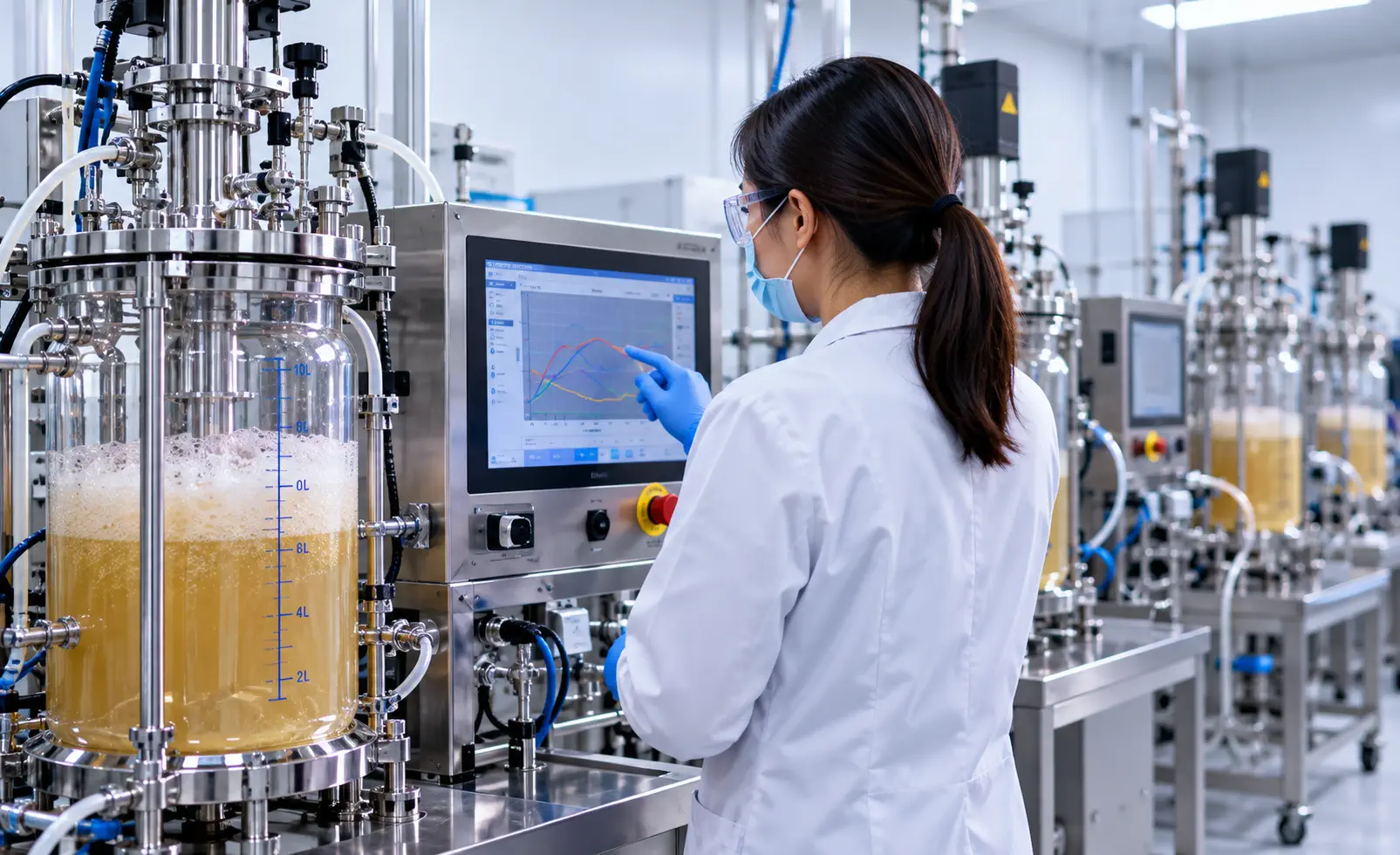

Figure 1. Editorial commissioning context: reviewing operating indicators and service connections. The pictured equipment is illustrative, not an identified OLLITAL catalogue machine.

A useful start-up review records the actual incoming utility conditions, how they change when pumps and agitators operate, the behavior of alarms and interlocks, and whether data capture continues as intended. If changes require a service engineer or an equipment-specific procedure, defer the adjustment until the relevant documentation and responsible person are available.

4. Steam and autoclave capacity are different sterilization projects

For a detachable laboratory glass vessel, the central question may be whether the approved sterilizable assembly fits the existing autoclave and whether its fittings, probes, tubing and containers are qualified for the intended cycle. Do not place the motor, control cabinet or other nonapproved components in the autoclave simply because the vessel family is described as autoclavable.

The OLT-100-M1 listing identifies autoclavable sterilization as the standard configuration and sterilization in place (SIP) as an option. The OLT-500-C1 stainless platform lists SIP. This creates different site obligations. An autoclavable glass assembly requires a safe transportation, cool-down and reconnection process. A SIP-capable stainless system requires an agreed steam source, compatible piping and instruments, air-removal/condensate management, insulation and protection, and evidence for the sterilized boundary.

In particular, a statement that “steam is available” does not establish that its pressure, quality, dryness, flow and condensate return are appropriate for the purchased system. Nor does the label SIP mean every optional feed hose, transfer branch, filter or sampler is automatically included in a validated cycle. Obtain the as-supplied connection drawing and the project-specific operating and acceptance requirements.

A closed system can contain hot steam, trapped condensate and pressurized sections. Never treat the generic engineering questions in this article as an instruction to open a pressurized line or alter a sterilization sequence. Steam piping, relief protection and operation must follow the equipment supplier’s instructions and applicable site safety procedures.

5. Electrical supply: confirm the actual order, not the marketing label

Electrical planning covers more than a socket and a nominal power figure. A complete utility sheet identifies voltage, frequency, phases, connected load, protective arrangements, grounding, plug or hard-wiring requirements, cabinet location and any separately powered auxiliaries. These items may vary by configuration, country, vessel scale and optional pump or heater selection.

If a recirculating unit, external chiller, compressor, steam generator, analytical instrument or dedicated computer will be installed, check whether it is powered from the bioreactor cabinet or from separate site circuits. The buyer should request a complete connected-load schedule rather than assume that the main fermenter nameplate covers every auxiliary device.

Power quality and environmental conditions also matter. Controls and data systems need a reliable supply and an appropriate electrical environment; wet floors, washdown exposure, ventilation and cabinet clearance can affect where the equipment should stand. For critical records, discuss the required response to supply interruptions and whether any independent power backup or controlled recovery is part of the project scope.

6. Exhaust, condensation and drainage cannot be afterthoughts

Exhaust gas from fermentation may carry moisture, droplets and foam-derived material. The approved exhaust condenser, filter and vent path must therefore be considered alongside gas supply, especially when airflow is increased or the culture foams heavily. Exhaust arrangements must suit the organism, facility containment rules, cleaning procedure and any treatment required by the site. Do not vent process exhaust into a room by default without the applicable safety assessment.

Drainage planning should distinguish normal clean-water discharge, condensed utility fluids, cleaning solutions, and process-contact liquid. They may have different handling and waste requirements. Record where drains terminate, whether gravity fall is available, what backflow prevention or isolation is required and who supplies hose connections or traps. A floor drain close to the equipment does not automatically make it appropriate for every discharge stream.

The site should also consider access to vents, drain valves, filter housings and sample points. If a clamp or service port can only be reached by moving a heavy vessel, routine maintenance becomes harder and sterility risks may increase.

7. Leave enough space for the equipment and the people operating it

Site dimensions should include the installed envelope of the fermenter, the actual cabinet door swing, reactor-head height, overhead clearance for the agitator, tubing bend radius, pump-bottle placement, maintenance approach and a safe path for moving sterilized assemblies or replacement components. Consider the turning and transport path from the loading dock or corridor, not only the destination room.

For projects connecting an autoclave, chiller, gas panel and fermenter across separate rooms, coordinate the route of every line before delivery. A line that appears short on a drawing may require protective routing around walkways, laboratory benches and future access zones. Protecting a hose from foot traffic can matter just as much as its nominal diameter.

8. Verify the installation record before releasing the system

The final site review should compare the agreed utility matrix with observed conditions at the equipment boundary. The commissioning log can record the utility source, the actual delivered conditions, who measured them, the instrument used, any deviation and the planned corrective action. This protects the supplier and buyer from later disagreement about whether a problem originated in the equipment or the facility.

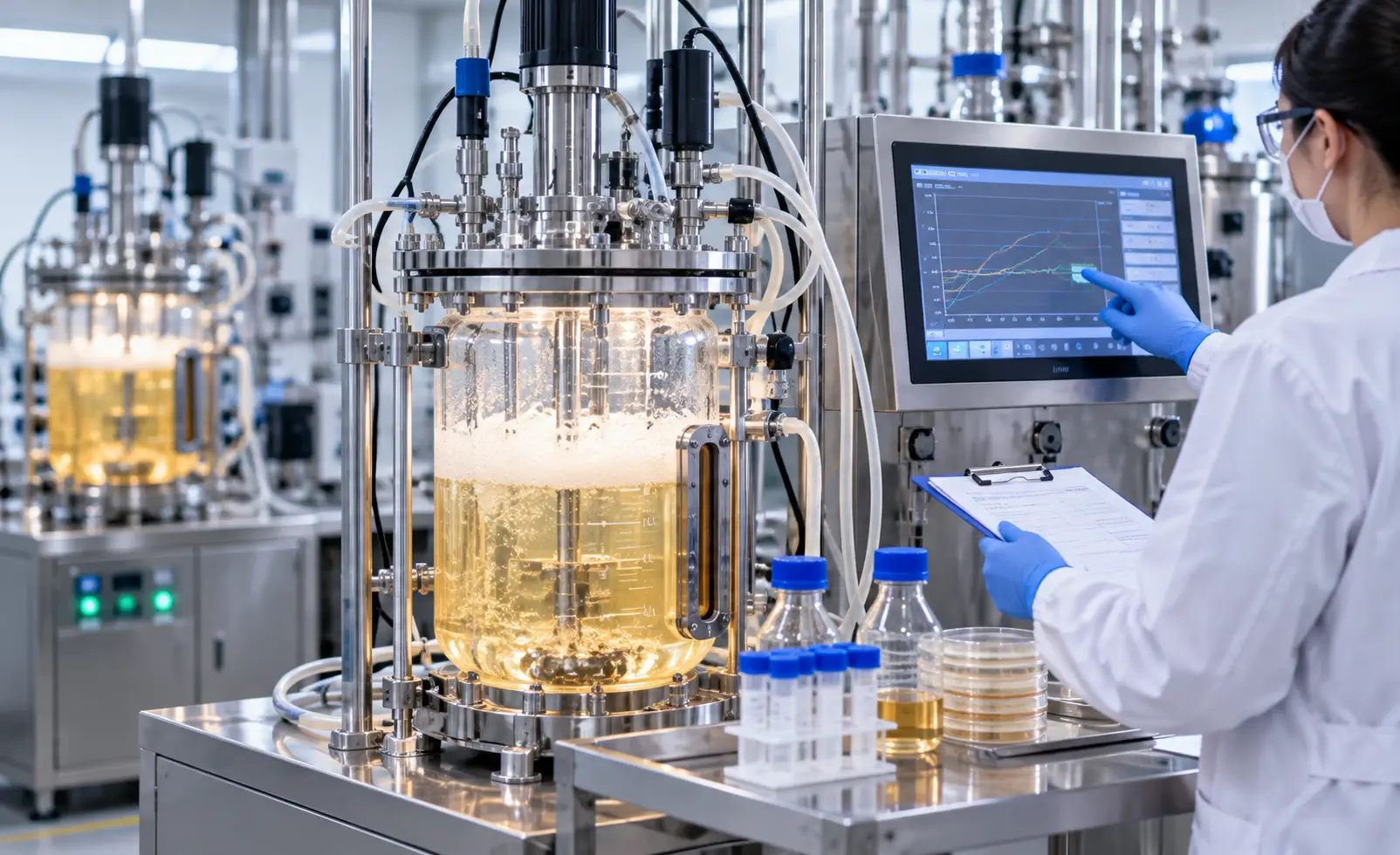

Figure 2. Editorial review of operating trends and installed support systems. Illustrative bioprocess equipment; not a photograph or acceptance record of a specific OLLITAL unit.

FAT and SAT serve different purposes. A successful factory acceptance test can establish that the equipment was evaluated under the factory’s conditions. Site acceptance must still confirm actual utilities, connections, installation integrity and the approved operating functions in the destination facility. Neither event alone proves culture-specific process performance or the sterility of future operations.

9. Assign responsibility at each utility handover point

A common source of installation delay is an interface that both teams assume the other will provide. For each connection, distinguish the equipment-side item (for example, the supplied port, valve or manifold) from the site-side service (such as the compressor, distribution pipe, chiller or drain header). Then state who provides and installs any intermediate regulator, filter housing, isolation valve, flexible hose, electrical disconnect or local support.

Responsibility should also cover testing. A supplier may verify internal factory pipework while the facility contractor remains responsible for the air network, electrical panel, steam distribution and external drain. The commissioning team must know who will confirm measured conditions at the actual connection and who is authorized to close a deviation. Agree on these limits in writing before equipment dispatch; a shared drawing marked with interface IDs is often more effective than lengthy email explanations.

The utility interface register: one page both teams should sign off

A compact interface register is more useful than an unverified line of generic technical specifications. The entries below are planning prompts only and must be completed with figures and limits from the agreed equipment drawings and the actual site.

Table 1. Project utility-interface register. All operating limits must be obtained from the selected equipment configuration and confirmed by the site.

What to send OLLITAL before approving the site utility drawing

A useful message contains the culture type and intended working volume; glass or stainless vessel preference; expected operating regime and highest-demand process phase; sterilization method; a brief note about temperature control and cooling-water availability; the laboratory’s compressed-air and optional gas sources; available electrical service; proposed vent/drain arrangements; and a room plan showing access constraints.

Where measurements are available, include the actual supply ranges rather than only a nominal building specification. Flag any uncertain item clearly. The engineering discussion can then separate what is part of the equipment supply from what needs to be prepared by the customer or facility contractor.

For available configurations, review OLT-100-M1 Glass Bioreactor and OLT-500-C1 Stainless Steel Fermenter. You can also browse the Bioreactor & Fermentation range to identify the relevant equipment family before confirming site connections.

Conclusion: readiness is an interface decision, not an equipment feature

A fermenter is only installation-ready when the specified equipment and the actual facility can operate together. Confirm air quality and capacity, cooling duty, sterilization scope, electrical protection, exhaust and drainage, then document who is responsible for every connection. Doing this before shipment makes commissioning more predictable and reduces troubleshooting that otherwise begins with the wrong assumption.
