The quick answer: a controller cannot remove heat by itself

A fermenter temperature drift is not always a temperature-controller fault. At peak microbial growth, cells release heat, the agitation system contributes mechanical energy, and cooling utilities must carry that energy away. If the heat entering the broth exceeds the heat that the jacket, base or recirculating circuit can remove, the liquid temperature can rise even when the screen still shows the correct setpoint.

The useful question is not simply “Why did the PID fail?” It is which part of the thermal chain became limiting: the biological load, the temperature measurement, the controller output, the utility supply, the coolant circulation, or the heat-transfer surface. Each cause requires different evidence and a different engineering response.

For example, OLLITAL currently lists an electric-heating and water-cooling arrangement for the Laboratory Small Glass Bioreactor Fermenter, while the Stainless Steel Bioreactor Fermentor page describes a closed-loop temperature system with a recirculating pump and heat exchanger. These are published configuration descriptions, not proof that every delivered unit has identical plumbing or capacity. Always check the ordered bill of materials and piping layout.

1. Understand the real heat balance

The broth experiences heat inputs and heat outputs. Biological metabolism can generate appreciable heat during active substrate consumption. Agitation converts shaft energy into fluid motion and ultimately heat; heat may also enter from the surroundings or an active heater. Cooling removes energy through the applicable jacket, base, coil or secondary coolant loop. Exhaust gas and evaporation can contribute, but their importance depends on the process.

A practical engineering expression is net heat accumulation = process heat input − effective heat removal. That does not substitute for a full energy balance, but it prevents a common diagnostic mistake: confusing a controller command with delivered cooling capacity. An open cooling valve is evidence of a demand signal, not evidence that sufficient coolant flow or temperature difference exists.

Because both microbial heat release and oxygen uptake often change with culture stage, an early-batch temperature check is a weak qualification for peak-growth duty. The assessment should cover the highest credible biomass, feed and agitation condition, together with the warmest expected cooling-water supply and the least favorable flow condition.

Do not confuse temperature stability with heat-transfer reserve

A system that holds a setpoint while the cooling output remains modest has some apparent margin. A system that holds the same setpoint only because its valve or compressor runs continuously may have little reserve. If the biological load increases further, the temperature can drift abruptly. Record both the controlled value and what the utility system is doing to maintain it.

2. Follow the evidence in the right order

Before changing PID parameters, trend the temperature reading against the setpoint, feed rate, agitation speed, airflow, controller cooling command, coolant inlet temperature, coolant outlet temperature, and measured coolant circulation if available. If a second verified temperature measurement exists, compare it with the process probe. The timing of the first change is often more informative than any one end-of-batch value.

The following matrix is a diagnostic framework for authorized engineering review. It is not a live troubleshooting instruction for opening hot or pressurized connections. Any physical intervention must follow site-approved procedures, safe isolation and equipment instructions.

3. The cooling utility is part of the process

A bioreactor cooling system is usually more than a single temperature setpoint. Cooling-water supply temperature can change with ambient conditions or with demand from other users in the facility. A recirculation pump can be operating without delivering the required flow. A control valve can be open while a blocked strainer, a closed isolation point or air in the line limits circulation. A heat exchanger can also lose effective performance because of fouling or inadequate approach temperature.

For an engineering assessment, distinguish three conditions: the temperature of the utility entering the circuit, the actual rate of circulation, and the temperature difference that the process-side heat-transfer arrangement can use. If any of those is missing, an apparently adequate nominal chiller or pump rating may overstate the duty available at the vessel.

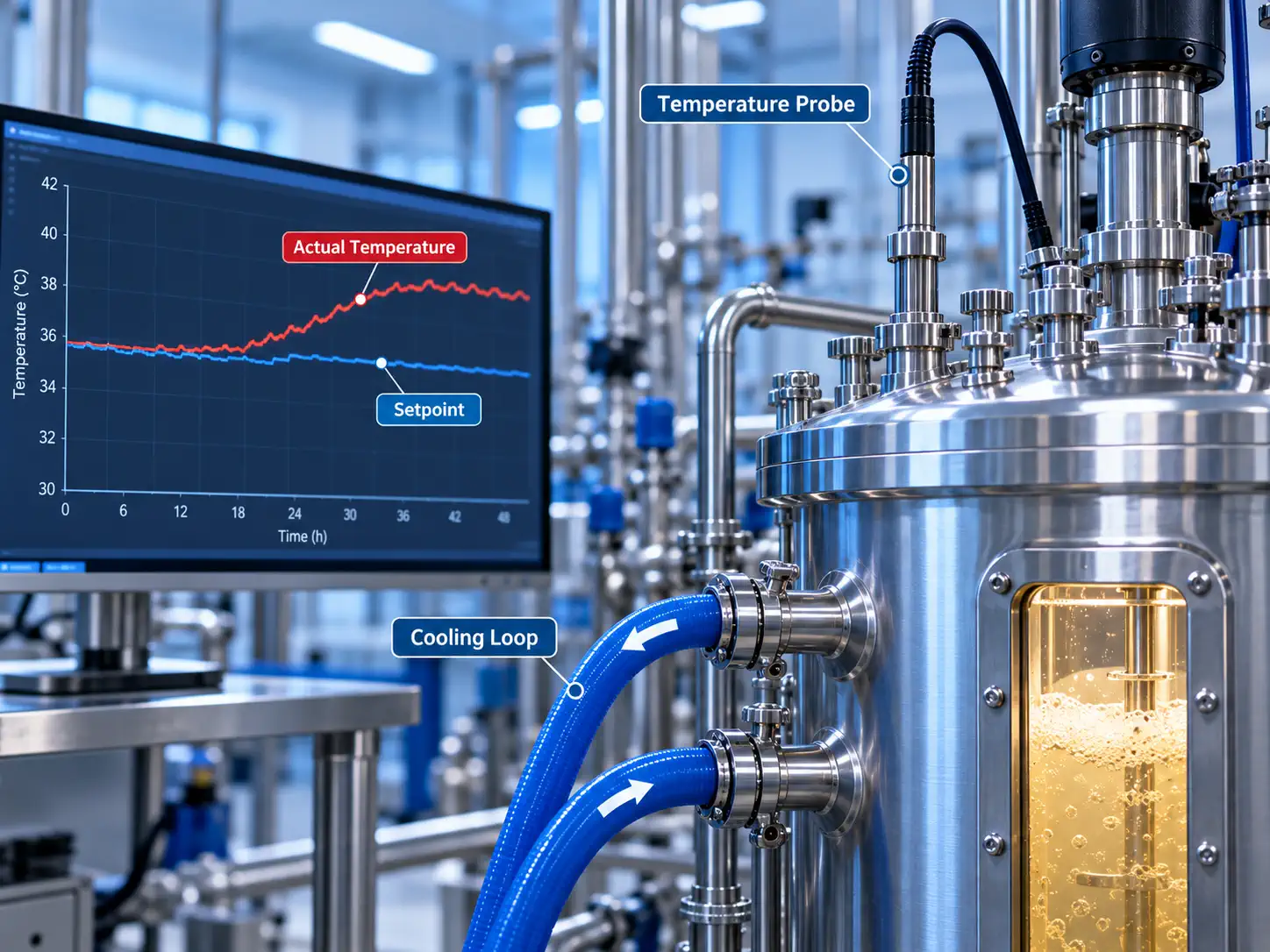

Figure 1. Conceptual temperature probe, cooling-loop and trend interpretation. Illustration only; equipment layout and plotted values do not represent OLLITAL test data.

The effective heat-removal capacity also depends on the heat-transfer area and the overall resistance across the vessel wall, jacket, coil or exchanger. Higher broth viscosity, fouling or poor circulation can degrade performance even when the mechanical equipment looks unchanged. More pumping is not an automatic solution: flow increases and pressure limits must remain within the approved design envelope.

When a temperature trace suggests utility-side limitations

Consider an otherwise repeatable fermentation in which temperature begins rising at a similar metabolic stage on several batches. If coolant supply temperature also increases during those episodes, investigate the shared utility as a possible bottleneck. If supply conditions remain stable but the inlet–outlet relationship changes, look at circulation and heat-transfer effectiveness. If the controller output itself never requests cooling, look first at measurement and control logic. These are diagnostic hypotheses, not a ranking of definite causes.

4. Glass-bioreactor and stainless-vessel architectures are not interchangeable

Small glass bioreactors may rely on a heating base or sleeve with water-assisted temperature management, depending on the actual configuration. At that scale, small working volume can make a temperature response look fast during commissioning. It is still necessary to confirm actual liquid volume, sensor position, thermal-contact geometry and the capacity of the connected water supply.

The OLLITAL OLT-100-M1 glass fermenter listing specifies an electric-heating and water-cooling method, with jacketed heating shown as a configuration option in the published table. That combination is appropriate to discuss during equipment selection, but it does not establish a universal coolant flow, maximum heat-removal rate or identical control behavior across every glass vessel size.

The OLLITAL OLT-500-C1 stainless fermentation system lists recirculating pump and heat-exchanger hardware for cooling/heating. A stainless system can therefore introduce additional design questions: utility connection size, recirculation circuit, valve architecture, thermal-control logic, cleaning and maintenance access, and the temperature measurement point. Users should confirm those items on the actual ordered drawings before trying to transfer assumptions from a glass system.

5. Design for peak growth, not just a normal operating point

The required cooling duty changes with biomass growth, feed addition, product physiology, oxygen use and agitation. One process might have a short but high thermal peak; another may hold a moderately elevated heat load for many hours. Both scenarios can be demanding for different reasons. The engineering inquiry should therefore describe the process timeline instead of offering only a target broth temperature.

A useful preliminary design record contains the maximum intended working volume, target temperature band, organism and medium type, the highest expected feed rate, typical and peak agitation, airflow and oxygen use where known, batch duration, expected growth phase, and relevant utility temperatures. If actual heat-load measurements exist, share the measurement basis. If they do not, distinguish an estimate from a verified requirement.

The mechanical and control packages should also be reviewed together. A temperature loop may depend on a facility cooling system, a secondary circulation loop and software states. A good acceptance plan verifies sensor calibration, actual actuator response, stable utility service, alarms and recovery performance over a justified test condition. It should not imply that one empty-vessel test proves full-load fermentation performance.

An illustrative batch comparison

Consider two runs in the same vessel at nominally the same temperature. The first run holds temperature comfortably during a modest feed phase. The second run begins to drift upward soon after a higher feed rate is introduced. It would be tempting to conclude that the cooling jacket has failed. But a useful comparison begins with the actual conditions: Was the second batch at the same working volume? Did biomass concentration or oxygen uptake change? Was the agitation demand different? Did inlet cooling water arrive at the same temperature? Did the cooling command saturate or remain idle?

If the controller increased its demand but the coolant supply and return readings did not change as expected, the utility and heat-transfer path deserve attention. If the demand never increased despite a verified broth temperature rise, investigate sensor feedback, controller state and actuator configuration. If both the demand and heat-removal evidence look normal, re-examine process heat release and the independence of the temperature reading. This reasoning prevents a misleading one-cause diagnosis.

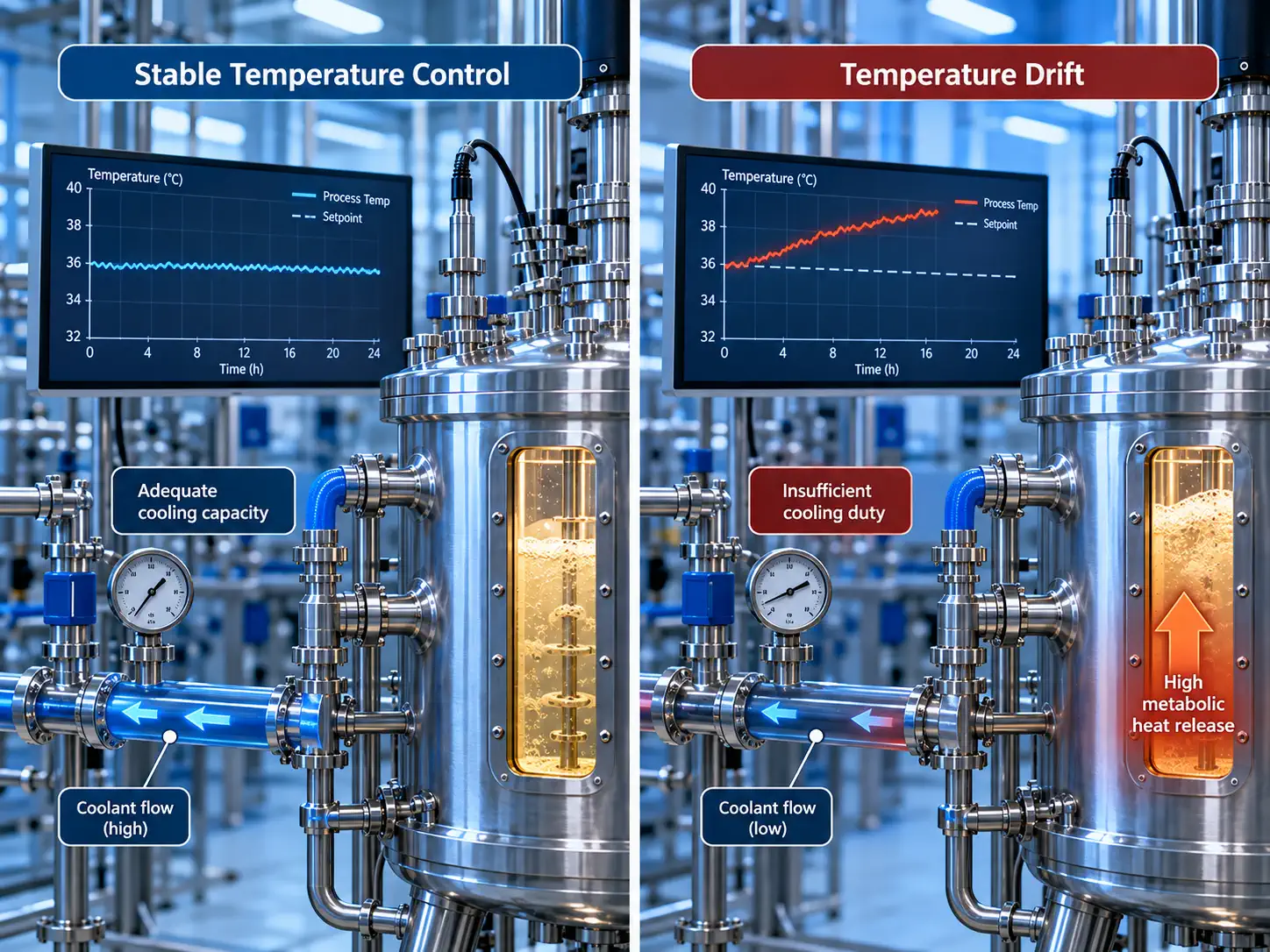

Figure 2. Illustrative temperature-control comparison under adequate and inadequate cooling duty. Not measured OLLITAL batch results.

How to define a useful cooling acceptance test

A credible acceptance check needs a defined thermal challenge and a record of how the system responds. The right test depends on the intended vessel, fluids, site utilities and approved commissioning method. It should document the test boundary, measurement locations, stabilization period, available coolant temperature, operating limits and the pass/fail criteria agreed before the test. A controller screenshot alone does not establish the total heat the system can remove.

A low-load water run can verify basic circulation and control response, yet may not reproduce the heat release, viscosity, foaming or gas dispersion of a live microbial culture. Where a representative worst-case biological trial is not appropriate, the engineering team should explicitly state what surrogate test represents and what remains unverified. The acceptance package should distinguish successful function checks from a demonstrated cooling-duty capacity.

When is resizing the utility more useful than retuning the loop?

Retuning may help if the control system overreacts, oscillates or responds too slowly despite available heat-removal capacity. It will not create additional cooling-water flow, colder supply water or more effective exchange surface. When the actuator is already demanding maximum cooling and the process continues to accumulate heat, the core question is whether the available thermal capacity is sufficient. An equipment review may then consider the secondary water loop, exchanger sizing, available approach temperature, fouling management and vessel-side heat-transfer geometry, subject to validated design limits.

Conversely, a temperature oscillation while the utility has obvious reserve may call for a control-loop review rather than additional hardware. A sensor installed in a poorly mixed zone can also produce an apparent cycling problem that is not fixed by changing the cooling package. The decision should follow measured evidence, with process engineers, controls specialists and utility engineers considering the same synchronized record.

6. A practical diagnostic record for recurring temperature drift

When temperature deviations recur, capture the sequence so the next review is based on evidence instead of recollection. A concise record can separate the process event from the equipment event and identify the owner of each unanswered question. It also becomes useful when requesting technical assistance or evaluating a revised equipment configuration.

• Batch context: organism, stage, vessel, working volume, medium, feed history and target temperature band.

• Measured response: temperature trend, validated secondary measurement if available, relevant DO/pH and alarm timestamps.

• Utility state: cooling supply/return temperatures, available circulation indication, valve/pump command and any shared-utility events.

• Mechanical and controls: agitation, active temperature-control mode, sensor calibration, actuator history and relevant maintenance.

• Disposition: cause considered, observations that support or contradict it, corrective action owner and acceptance evidence before restart.

A warning about quick fixes

Do not treat an unexplained temperature rise as a prompt to change several parameters at once. Increasing cooling flow outside a rated condition, overriding alarms or making ad hoc changes to a hot or pressurized system can create separate hazards. Operators should use approved procedures, preserve trend records and escalate an unresolved heat-removal limit to the responsible process and equipment engineers.

7. What to send OLLITAL when cooling capacity is uncertain

When requesting a new laboratory bioreactor or a stainless process fermenter, send the actual working volume, organism and growth stage, peak feed and agitation conditions, target broth temperature and permitted deviation, utilities available at the site, and any historical data showing where cooling became inadequate. Specify whether you need a benchtop solution, a process vessel, or an upgrade to an existing circuit.

The current Bioreactor & Fermentation range provides context for glass and stainless platforms, but the thermal package should be reviewed against the specific project and confirmed configuration. Relevant dimensions, sensor placement, recirculation architecture and control features belong in the technical discussion before quotation or commissioning.

Conclusion: measure the limit before changing the setting

A fermenter that drifts above its setpoint during peak growth may be telling you that the thermal load has changed, the cooling utility has weakened, the heat-transfer path is insufficient or the measurement and control system needs investigation. These mechanisms can overlap. The most useful response is to reconstruct the event from synchronized process and utility evidence, then verify the correct corrective action within a safe, documented operating envelope.

At OLLITAL, we recommend comparing the actual duty with the specified thermal architecture instead of assuming the same temperature setpoint implies the same process capability across scales. For a configuration review, share your current operating data and cooling requirements through Contact OLLITAL.
