It is used to study the chemical reactions of gas, liquid, solid, and fluid systems under simulated ultraviolet light, visible light, and special simulated light irradiation. The reactor has high pressure and normal pressure, and the temperature can also be controlled. The light source is combined with the needs of the test process, and can be built-in or externally illuminated. Light source: The light source can choose LED lamp beads, low-pressure ultraviolet lamp tube, LE light bar, mercury lamp, xenon lamp, high-pressure ultraviolet lamp, metal halide lamp, etc.
Item no.:
OLT-PF-10Capacity:
10-30LVoltage:
220V 50HzCertificate:
CE CertificateWarranty:
1 yearStainless steel high pressure reactor is an stirring reactor for chemical material reactor with different phase, such as, gas-liquid, liquid-liquid, liquid-solid, or gas-liquid-solid, etc. It can stir all kinds of chemical material in high temperature, high pressure, vacuum condition to enhance the mass transfer and heat transfer process.
Specification
|
Model |
OLT-PF-10
|
OLT-PF-20 |
OLT-PF-30 |
|
Capacity (L) |
10 |
20 |
30 |
|
Setting pressure (Mpa) |
22 |
||
|
Setting temperature (℃) |
350 |
||
|
Accuracy of temperature control (℃) |
±1 |
||
|
Heating method |
General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc |
||
|
Stirring torque (N. cm) |
120 |
||
|
Heating power (kW) |
7 |
10 |
10 |
|
Temperature controller |
Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter. |
||
|
Temperature controller working environment |
Ambient temperature 0-50℃, relative humidity 30-80% |
||
|
Lifting mode |
manual lift or electric lift |
||
|
Material |
304/316 Stainless steel, Titanium, also can plus PTFE liner |
||
Features
1)Static sealing structure
The Static sealing structure instead the motive seal. The stirrer and motor are Magnetic coupling connection.
2)Perfect, full sealing and no mass leakage
It adopts unique the torque transmission without contact
3)Application of high requirement degree
Suitable for the stirring reaction of flammable and combustible, toxic, Valuable medium or other Strong penetration of chemical medium.
It is the most ideal, non leak reacting equipment for Vulcanization, fluoride, hydrogenation, halide, polymerization reaction, etc in Petroleum, chemical industry, Organic synthesis, polymer polymerization, food industry, etc.

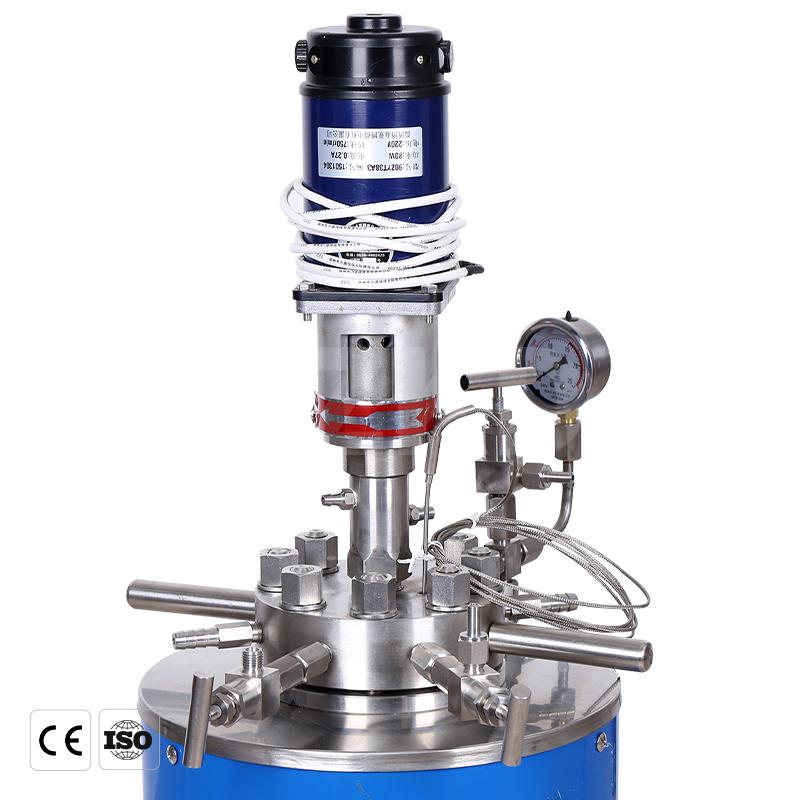

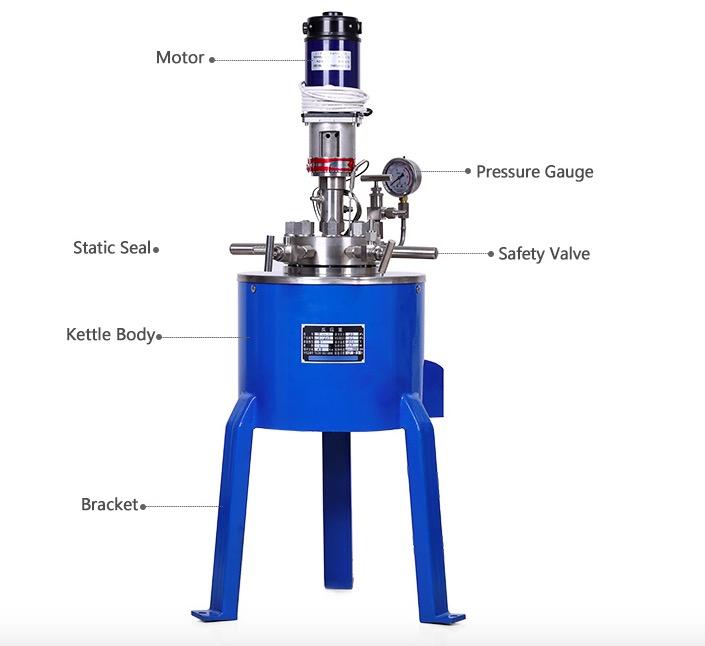

Detailed Images
 |
Controller-Digital Display Intelligent digital temperature control meter, with the functions of automatic temperature control, speed display and stepless speed control, equipped with heating electric meter, motor ammeter, working time display meter. |
| Static Seal-No Leakage Reaction vessel stationary ring and stationary ring base create the perfect seal with no need for o-rings, according to their structural features, contact stress increased with increasing working pressure, sealing performance is better under the high pressure. |
 |
 |
Pressure Gauges-Seisnic Stability Seismic pressure gauges for the environment places severe vibration, the pulse of media tolerance, and the impact of a sudden unloading, gauges clear instructions and stability, with good vibration resistance. |
| Safety Valve-Safe and Sellable The reaction kettle equipped with safety valve, that adopted blasting diaphragm, blasting numerical error is small, instantly exhaust gas fast, safe and reliable. Each valve adopts needle valve, reciprocating closed form, seal is reliable and durable. All safety valves with resonable installation and releasing unblocked. |
 |
 |
 |
