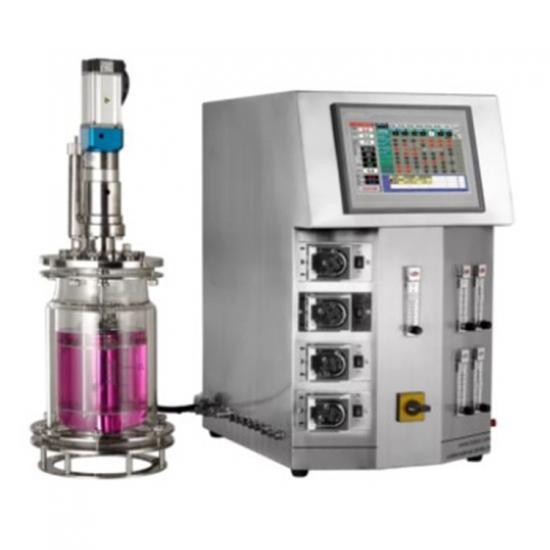

Glass Jacketed Hollow Fiber Membrane Bioreactor
Cell culture fermenter bioreactor
-
Item no:OLT-100-M1
Payment:T/T
Product origin:China
* All our products can be customized according to drawings and requirements.Contact our engineers now to find out the most suitable and cost-effective solution !
Plant Cell Cvulture Bioreactor Bench Top Bioreactor
Product Description

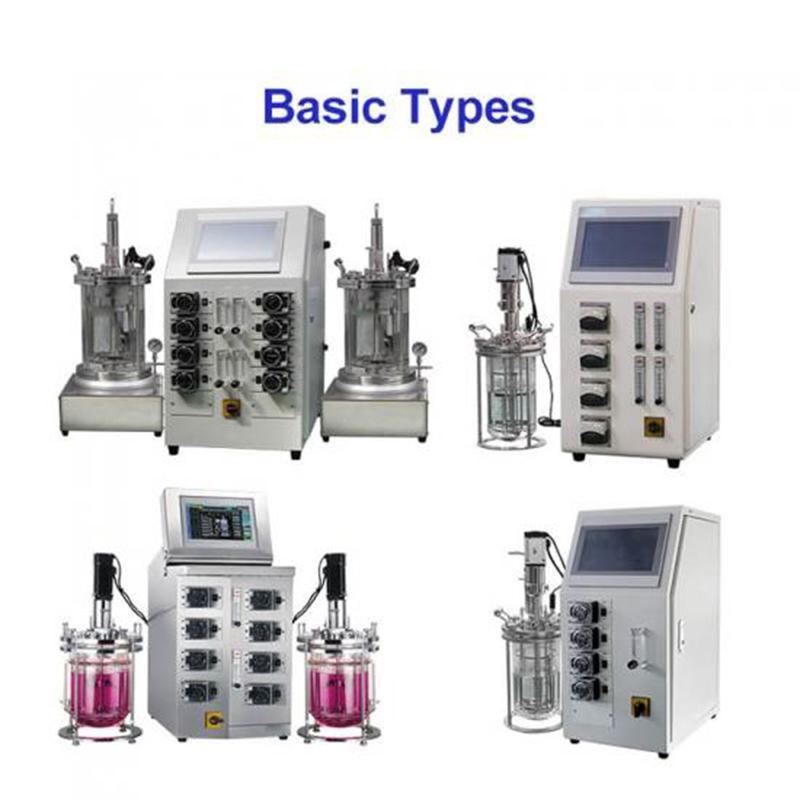

OLLITAL offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Control Unit | OLT100-M1 |
Digital controller, colored touch screen | ● |
Control Capabilities |
|
Temperature, DO, agitation speed | ● |
Adding acid/alkali/CO2 to control PH | ● |
Rotameter | ● |
Low noise stirring motor | ● |
Peristaltic pump | 4pcs |
For PH (acid/alkali), deform, feeding | |
Process Data Recording |
|
Temperature control | Process sequence control |
Electric heating sleeve with bottom water to control heating / cooling | |
PH control | Range: 2~12（±0.01)，display: 0~14（±0.01), PID，auto control，autoweighing，system calibration |
DO control | Range: 0~150%，±3%，International eletrode and shielded wire detection |
Defoam control | Defoaming electrode, mechanical compression defoaming blade |
Automatic foam detection, peristaltic pump automatically add defoamer in proportion to time | |
Agitation control | Servo motor, PID control, stepless speed regulation |
Gas supply control | 1 line（Air/O2），Rotamater |
Culture Vessel |
|
PH electrode, cable | ● |
DO electrode, cable | ● |
Temperature sensor Pt 100 | ● |
Foam electrode, cable | ● |
Options |
|
Gas mixing options（Air、O2、CO2、N2） | ○ |
Cleanliness detection | ○ |
Online live cell detection | ○ |
Automatic vessel pressure control | ○ |
Top Aeration | ○ |
TMFC (Thermal Mass Flow Controller) | ○ |
CO2 detection | ○ |
Redox | ○ |
Exhaust detection analysis | ○ |
Liquid Level | ○ |
Filling weighing system | ○ |
Methanol and ethanol content online detection | ○ |
Additional feed pump | ○ |
Variable speed pump | ○ |
Upper controller | ○ |
Control Tower |
|
Controlling | Industrial PC |
Display | Operation | Touch Panel 10“| Touch screen |
Communication | RS485 |
Housing Material | SUS304 |
External Connection |
|
USB | 1pcs，Data export |
Balance connection | 1 * RS485 |
Sensor type | PT100 |

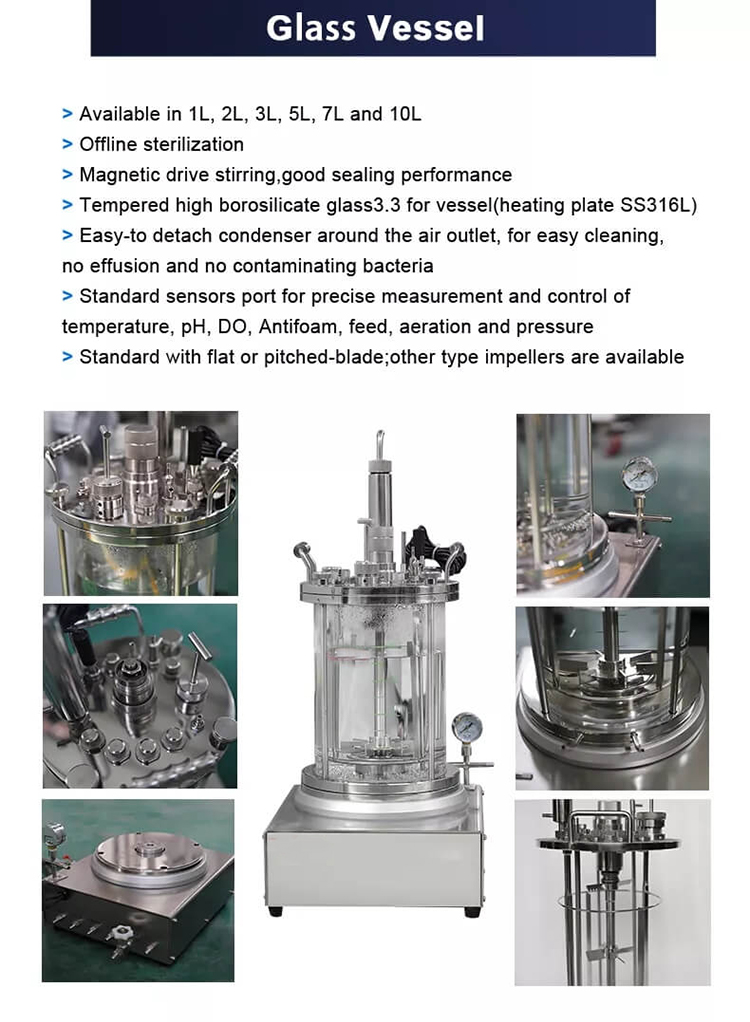

Vessel Technical Data
Culture Vessel | 1L | 2L | 3L | 5L | 7L | 10L |
H:D ratio | ≈1:2 | |||||
Total volume | 1.1L | 2.7L | 3.5L | 5.8L | 7.9L | 11.2L |
Working volume | 0.8L | 2.0L | 2.6L | 4.4L | 6.0L | 8.4L |
Minimal working volume | 0.3L | 0.7L | 0.9L | 1.5L | 2.0L | 2.8L |
Agitation speed range | 5~1000rpm | |||||
Motorpower | 0.18Kw | 0.4Kw | 0.4Kw | 0.4Kw | 0.4Kw | 0.75Kw |
Impeller to vessel diameter ratio | 1:2 | |||||
Surface treatment | Inner vessel Ra ≤ 0.4 um，Outer surface Ra＜0.6 um | |||||
Material | Pressure | SUS316L, Borosilicat glass| | 0.10Mpa（Max 0.15Mpa） | |||||
Vessel Configuration |
| |||||
Low noise stirring motor | ● | |||||
Autoclavable sterilization | Sterilization in place | ● | ○ | |||||
Magnetic drive | mechanical drive | ● | ○ | |||||
Storage bottle [2pcs] | ● | |||||
Exhaust condenser [water cooling] | ● | |||||
Customizable blade | ○ | |||||
Custom port | ○ | |||||
Electrical heating | Jacketed heating | ● | ○ | |||||
